PP-9732W
Product Introduction
01

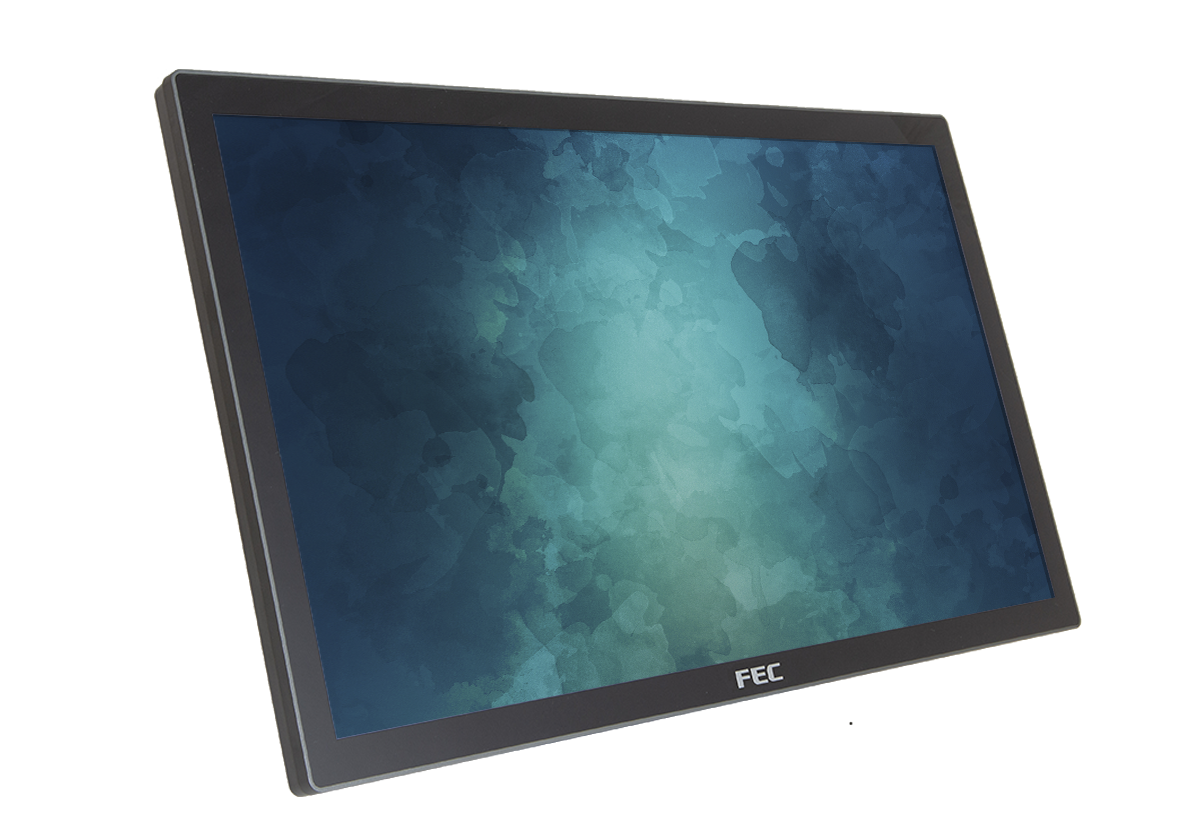

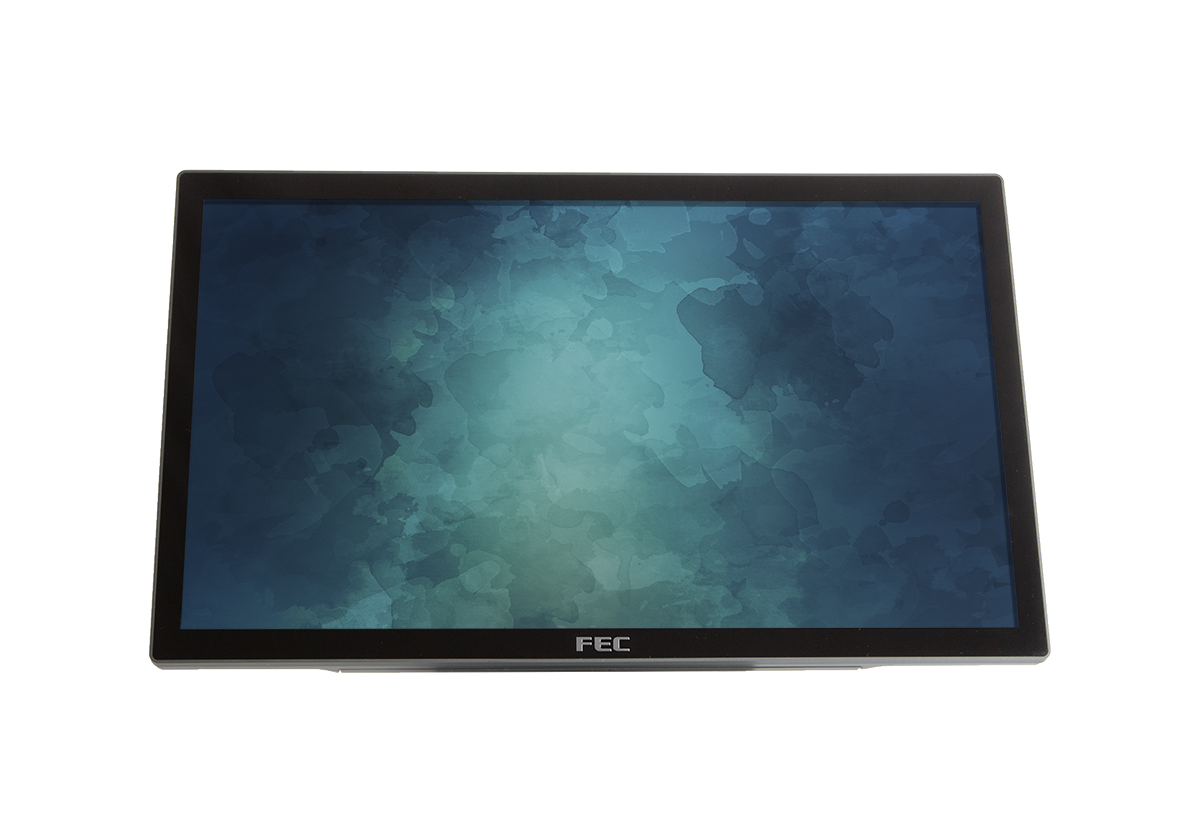

22" Fanless Panel PC

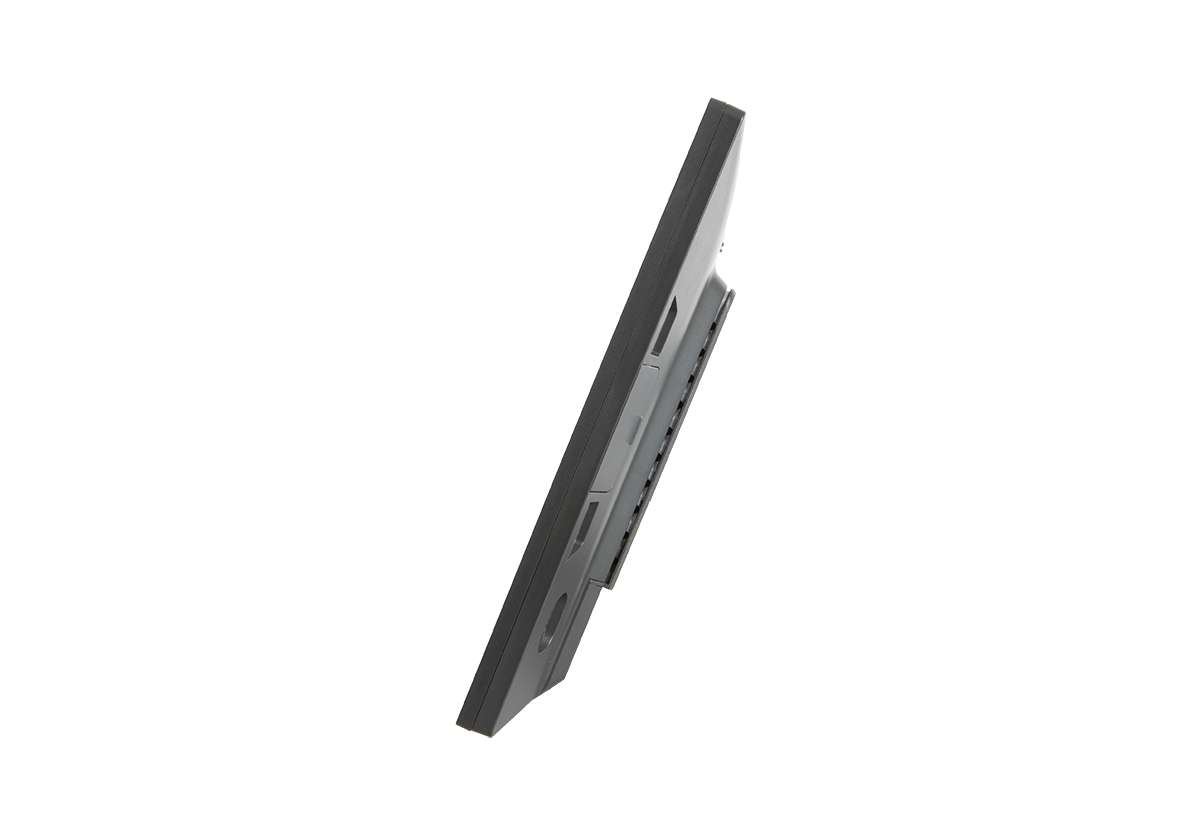

XPPC PP-9732W is an ultra slim All-in-One panel PC.
- Platform: Celeron J6412
- Processor: J6412
- System Storage: 1 x M.2 M Key (PCIe)
02
Digital Information Signage
FEC 22 inch Panel PC can be used in different way, with universal VESA wall mount design, they can be easily mounted on any flat surface or connect with FEC Stand to use as desktop type,
03
Large Enterprise Environment
Large screen All in One Panel PC is perfected for digital signage, product display, industrial control system or apply with self-ordering system.
Specifications
CPU
- Intel® Celeron® J6412 1.5M Cache, 2.0GHz
Memory
- 4GB Standard, Max 128 GB (1 x So-DIMM DDR4)
Storage
- 1 x M.2 M Key (PCIe / SATA)
Connection
- 1 x M.2 E Key 802.11ac + BT 4 (Optional)
Speaker
- 2 x 2W Internal Speaker
Display
- 22" TFT, 1920 x 1080
Touch
- True-Flat PCAP
Brightness
- 250 nits
Power
- 20V / 90W or 20V / 130W External Adapter
OS
- Windows 10 IoT Enterprise
- Windows 11 IoT Enterprise (Est. available in Q3 2023)
- Linux
TPM
- TPM2.0: Intel PTT

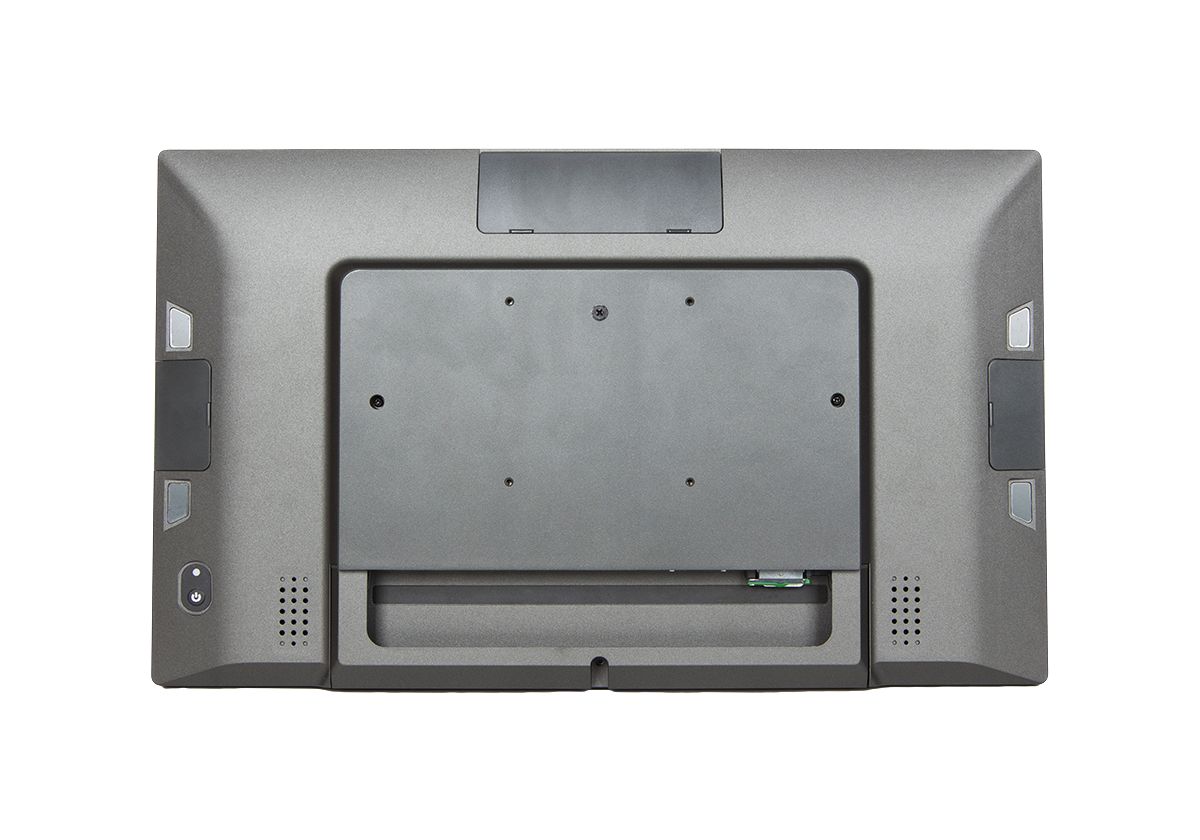

Mounting
- VESA 100 x100 mm
Certification
- FCC / CE Class B
Appearance
- Aluminum Die-Casting + Plastic
- Galaxy Grey
Temperature
- Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
- Storage: -20˚C ~ 60˚C (-4˚F ~ 140˚F)
Dimensions (W x H x D)
- Product: 512 x 309 x45 mm
- Carton: 662 x 210 x 440 mm
Weight
- Net: 5.5Kg
- Gross: 7.0 Kg
Port
- 1 x RJ11 Cash Drawer (12/24V)
- 1 x USB 3.0 Type A
- 3 x USB 2.0 Type A
- 1 x SMART DD (Reserved for FEC 2nd Display)
- 1 x HDMI
- 2 x RJ45(RS232)
- 1 x Giga LAN
- 1 x 20V DC-In
- 1 x SMART IO (Reserved for optional addition IO interface)
Optional
- Universal IO (Reserved for 1 of 4):1 x 24V P-USB1 x 12V P-USB2 x USB 2.01 x RJ45 (RS232)
- SMART IO for converting cable to (1 of 5):1 x DB9 (RS232)1 x 12V DC Out1 x 12V P-USB1 x USB Type B 2.0 + 24V DC Out1 x USB Type B 2.0 + 12V DC Out
